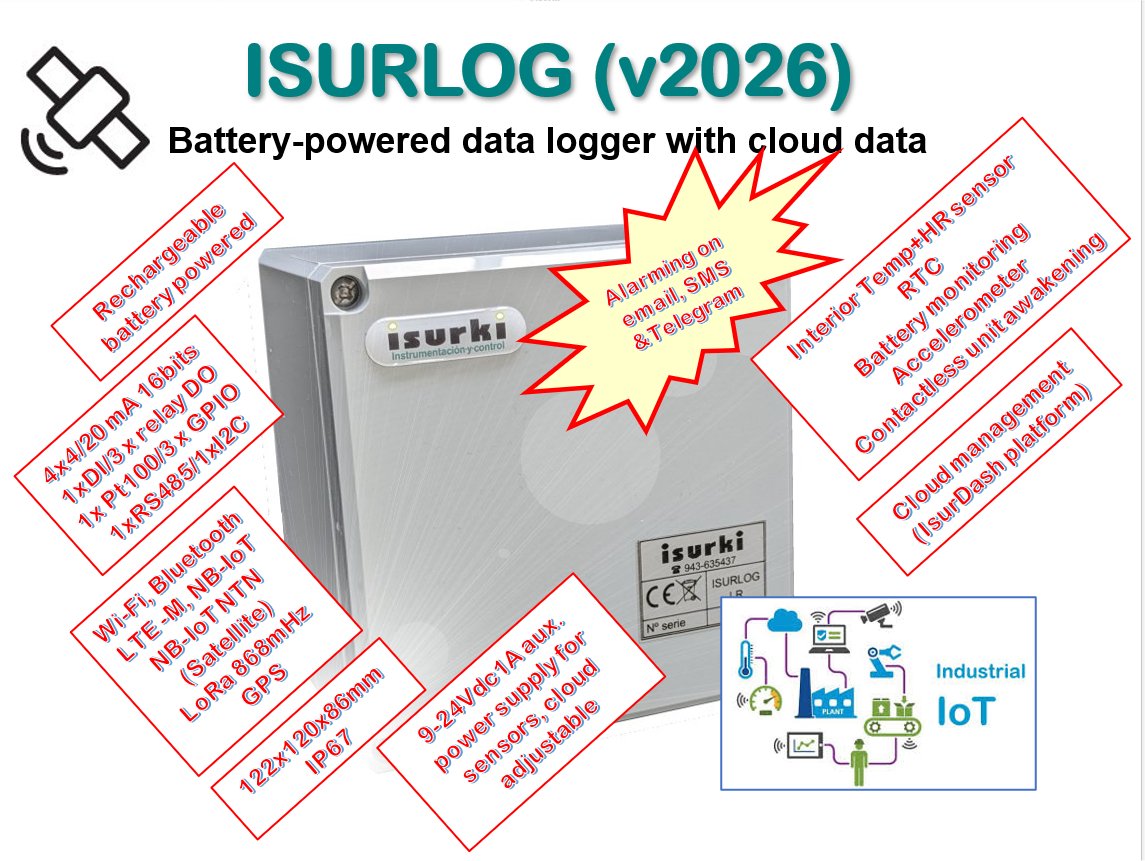

ISURLOG



ISURLOG is a state-of-the-art intelligent datalogger with a cloud connection that allows:

• Wireless remote communications by terrestrial (NB-IoT), satellite (NB-IoT-NTN) and free (LoRa) networks.
• Local wireless connectivity using Bluetooth and Wi-Fi.
• Device consumption management to ensure maximum battery life.
• Constant information on sensor parameters and connected device statuses.
• Remote and local wireless configuration of system operating parameters.
• Real time messaging, via email, SMS and Telegram, about alarms and operational diagnostics, both of the process to be controlled and of the ISURLOG units that control it.
• Database of historical records hosted in the cloud, which allows analysing and optimizing the operation of the infrastructure to be controlled.
• Remotely management of the fleet of installed units, using the IsurDash cloud platform.
Entradas y salidas

Embedded Inputs/Outputs (I/O) for external sensors/detectors:

  • Aux. power supply for sensors 9-24V 1A (cloud adjustable) + 5V/0.5A.
  • 4 x 4-20mA analogue inputs, active/passive loops, fused protected with aut. reset.
  • 1 x voltage free DI.
  • 1 x RS485, up to 32 sensors + 1 x QWIIC connector for I2C sensors.
  • 1 x PT100, 2, 3 or 4 wires.
  • 3 x relay DO: 1 x 2A + 2 x 0.4A.
  • 3 x GPIO, one by one selectable as I/O.
Módulo de ampliación

I/O expansion module:

  • Modbus RTU.
  • 4 x 4/20 mA analogue inputs, active/passive loops.
  • 2 x voltage free status DI + 2 voltage free counter.
  • Open/closed and proportional control of automatic hydraulic valves (pressure and flow regulators) with latch solenoid valves.
  • Internal temperature and relative humidity measurement inside the device.
ISURLOG - DOWNLOADS
Title
Link
Contents
1.- Data sheet
pdf1
 Technical characteristics and options
