INSTRUMENTATION

Limnimetric scale

Escala limnimétrica Escala Limnimétrica Escala Limnimétrica Escala Limnimétrica
Application

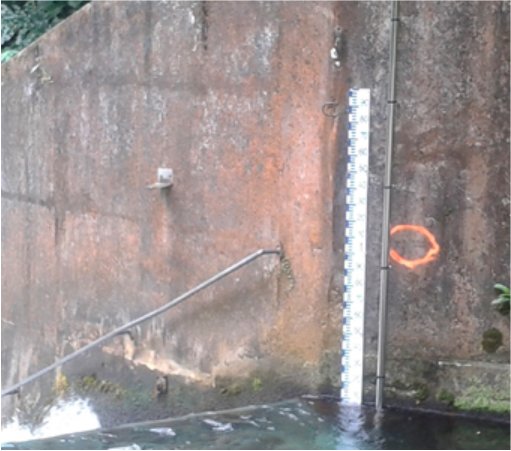

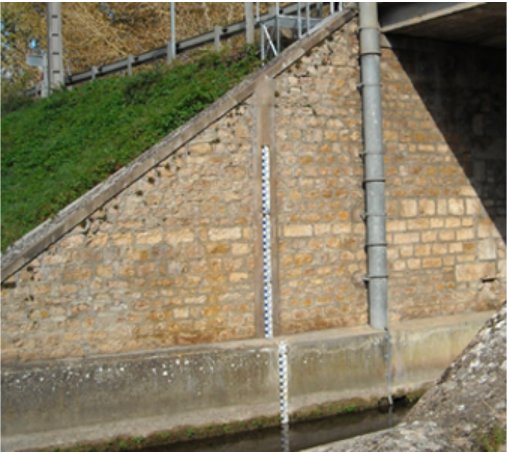

Limnimetric scales provide a visual indication of water level in open-air waterways (rivers, lakes, ponds, dams, reservoirs, open channels, weirs, port docks...) withs respect to a referenced level or “zero”. The sense of the indication can be increasing or decreasing.

Marked

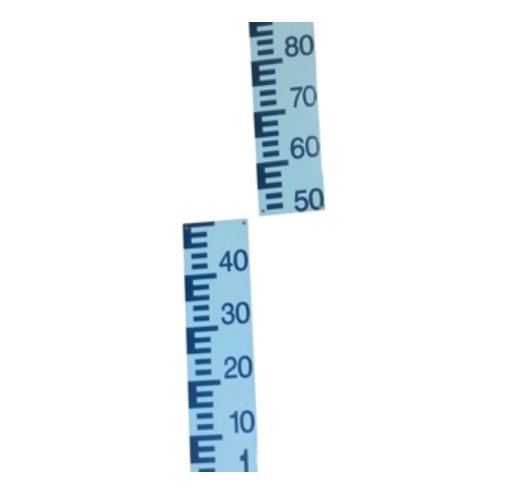

The scales are graduated in centimetres and marked in all decimeters (10, 20, 30, 40, 50, 60, 70, 80, 90). The lowest graduation is at the base of the scale on the positive scales and in the upper part for the negative ones. The graduations are made of cast enamel at 800 °C which guarantees extreme resistance against the action of water solar radiation. For measurements > 1 m a meter by meter marking is printed at the lower right area.

DATA SHEET

pdf1

LEVEL SENSORS

⌑ Submersible

CNC4200-MT3

CNC2400-MT3
Measurement principle

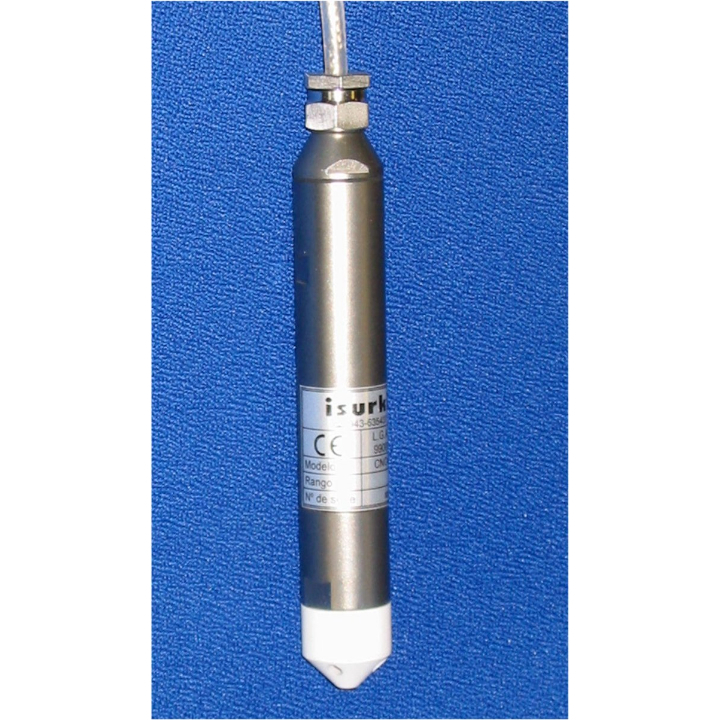

The CNC4200 is based on a ceramic die and measures the hydrostatic pressure through a capacitive effect. A vented tube inside the cable assures the compensation of the atmospheric pressure variations. It can be installed inside the water or threaded to process using its ¼” G connection (optional).

DATA SHEET

pdf1

⌑ Contactless

NRV

NRV NRV NRV NRV
Application

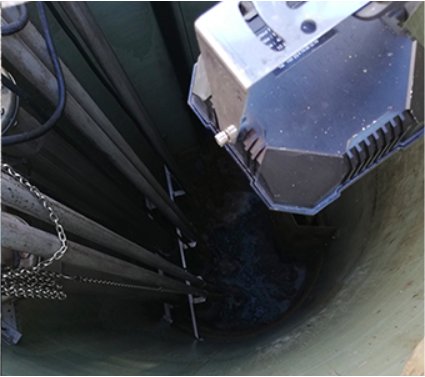

This new generation of sensor lets carry out surface water level measurements in natural environments (river, lake, pond ...) or channeled (reservoir, open channels…). They are supplied in different ranges (3, 8, 12 meters 4/20 mA or ModBus) and they can be installed by easy way in all kind of structures such as, walkways, bridges, walls, pilars

Advantages and benefits

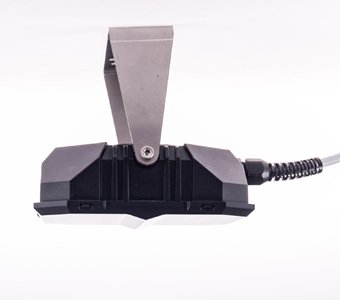

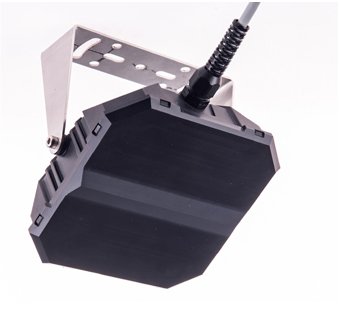

The NRV radars are based on pulse radar technology without inmersion or contact with the effluent. The miniaturization of the case (12x12 cm sideways and 4,5 cm thick) allows a direct installation decreasing the risk of vandalism. Its protection index (IP68) is guaranteed tkanks tu its fully waterproof ABS case.

DATA SHEET

pdf1

Cruzoe

Cruzoe Cruzoe Cruzoe Cruzoe
Application

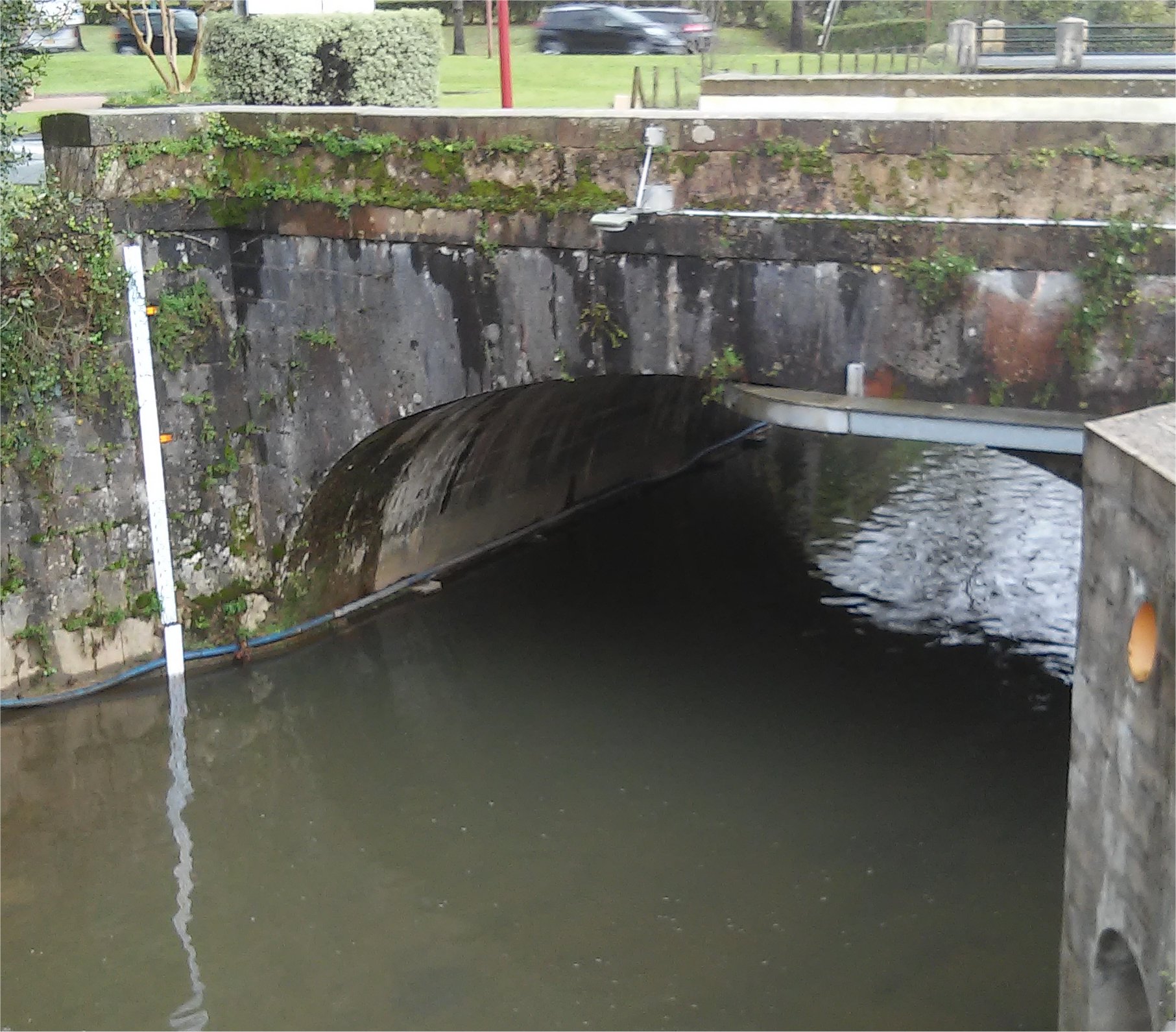

Designed to perform measurements in natural environments, the PARATRONIC´s radars are used to monitor the level of rivers, channels, water surfaces or even in pump station drains or storm water relievers.

Simple and efficient

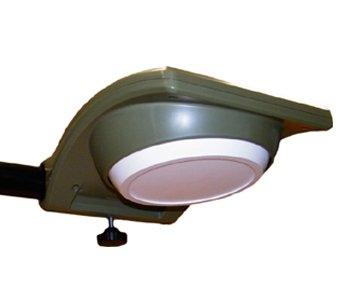

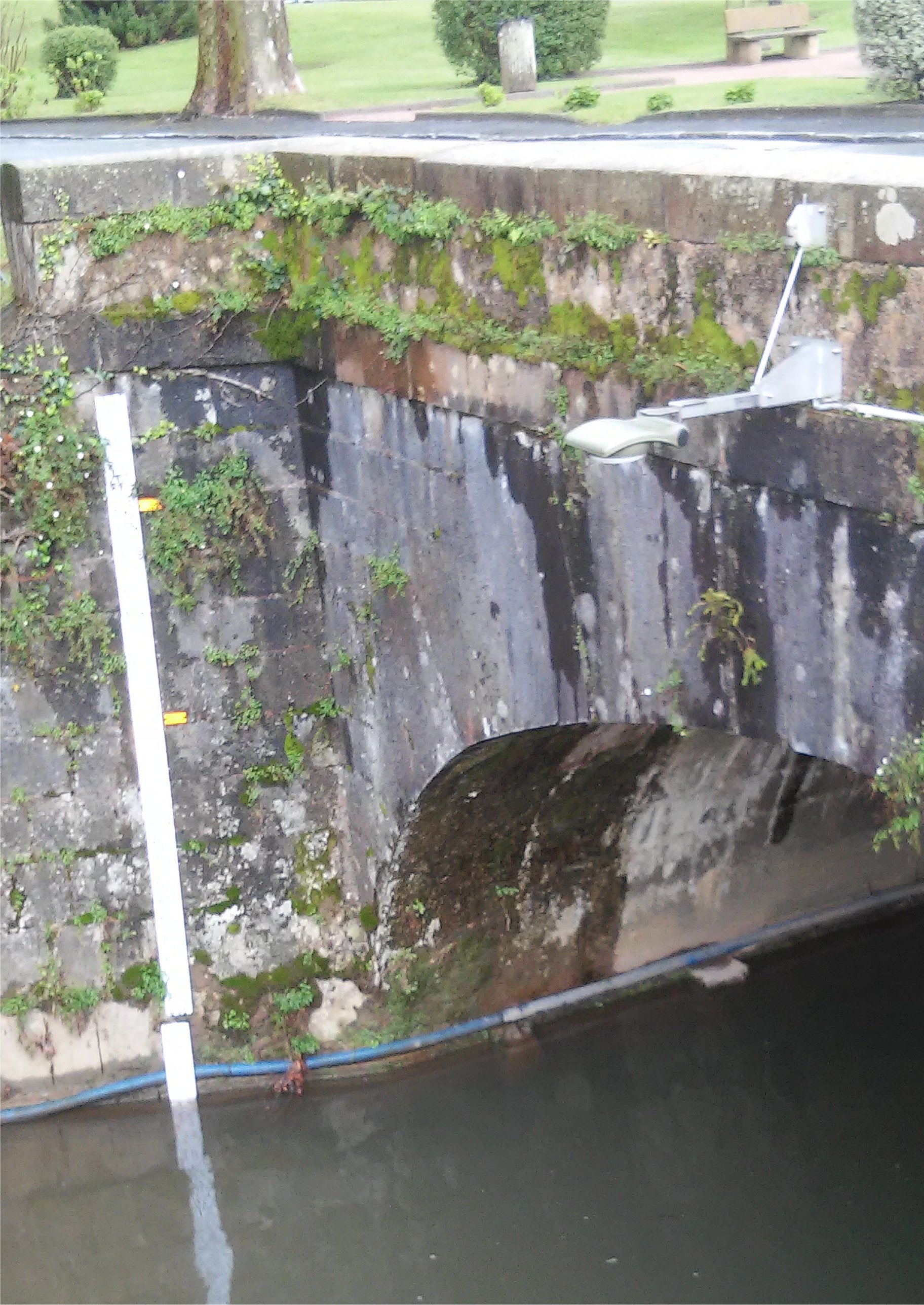

The PARATRONIC´s CR420 or Cruzoe level sensors, are based in impulse radar technology. Its very low consumption allows a use with batteries or solar panels. Freestanding, correct automatically the falls of horizontality of 10 º. Its neutral color allows them to get confused with natural environment. The measuring cone and the reduced blind zone facilitate its involvement in confined media.

DATA SHEET

pdf1

Radius

Radius
Application

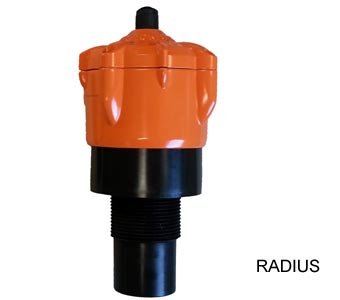

Compact and autonomous self powered solution (no power supply required), the RADIUS performs a continuous level measurement, counts and registers with time and date alarm thresholds and calculates flow rates and volumes discharged to natural environment. Data can be locally or radio remotely downloaded.

Simple and efficient
Water proof, autonomous (>5 years) and contactless operated ultrasonic sensor, thus eliminating maintenance operations, RADIUS automatically performs level measurement and logging (up to 54.000 measurements). A powerful and remotely operated software utility allows RADIUS to automatically calculate flow rate and volume values based on level measures.

DATA SHEET

pdf1

US6

US6
Application

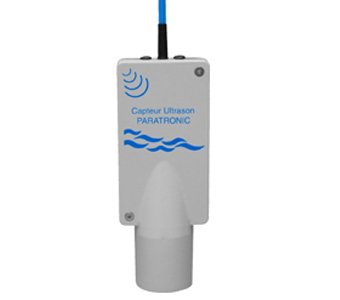

Simple solution for contactless level acquisition in reservoirs, tanks, storm water spillways and weirs; locations where PARATRONIC ultrasonic sensors fit perfectly.

Simple and efficient
Easy to install (suspended from cable or fixed with an angled mounting accessory), the configuration of the US sensor can be easily set using the USP console. It provides a 2 wire 4/20 mA analog output directly or inversely proportional to level. US is supplied in ranges of 6 or 10 m with a reduced emission cone and can be connected to autonomous data acquisition systems (SCADA) thanks to its extremely reduced delay time.

DATA SHEET

pdf1

LEVEL DETECTORS

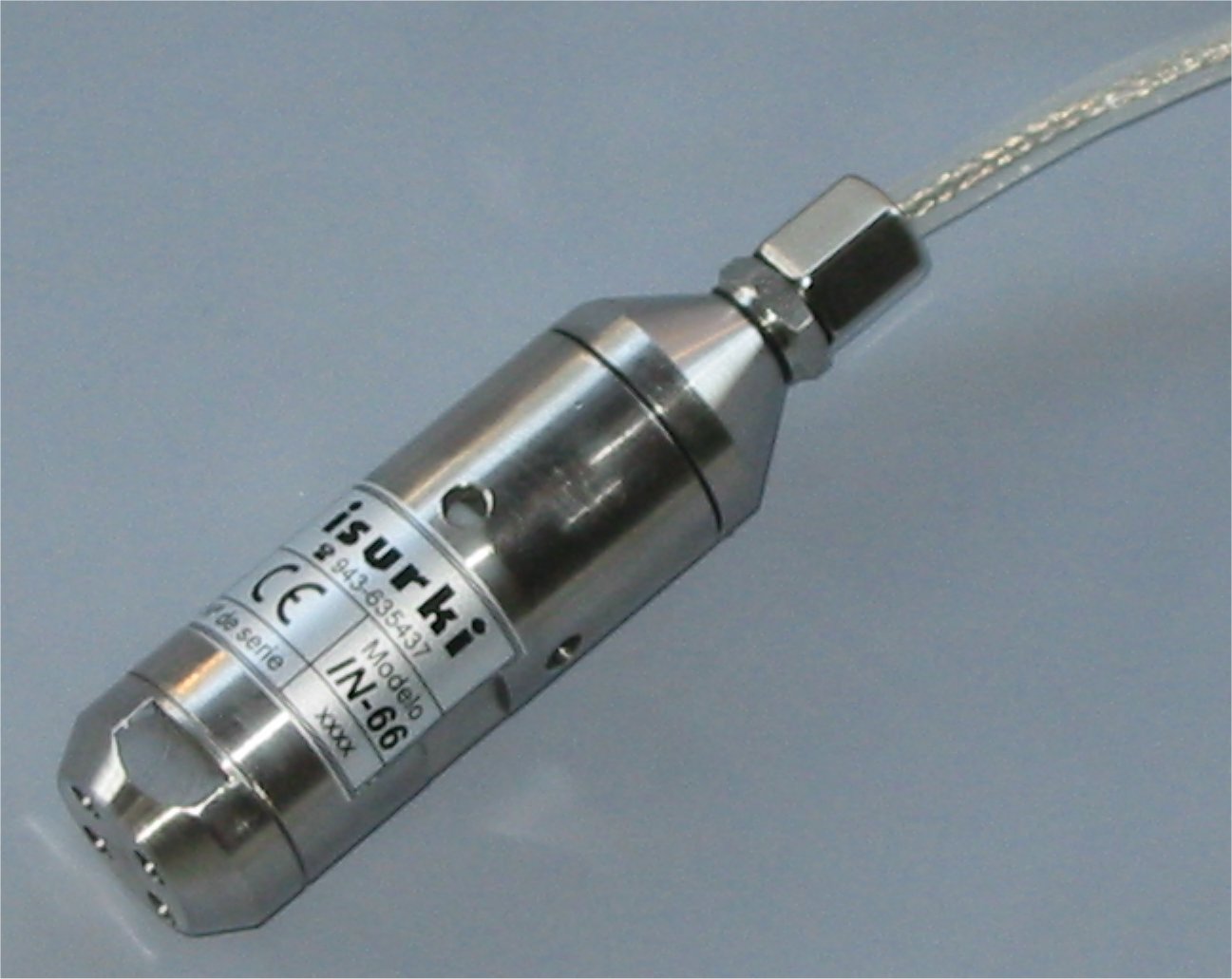

IN-66

IN66
Application
Liquid level detection, alarm management and security in reservoirs, tanks, hydroelectric plants, channels, etc…, as a redundant security signal associated to continuous sensors with analog output. Suitable for raw, drinkable and rain waters. It avoids the snagging problems of traditional floating buoys and can be deployed within manholes and wells with a minimum floor area.

Principle
Static (motionless) and submersible water level switch, equipped with a magnetic float inside. Must be attached at the height where liquid level threshold detection is required. When the liquid reaches this height, it penetrates inside the outer cylinder through the Ø5 mm drills, toggling the inner float which activates a reed contact, providing a potential free contact signal.

DATA SHEET

pdf1

PARATRONICS STORM SURGE

General catalog of protectors of Paratronic

Catálogo Paratronic Catálogo Paratronic Catálogo Paratronic Catálogo Paratronic
Aplication

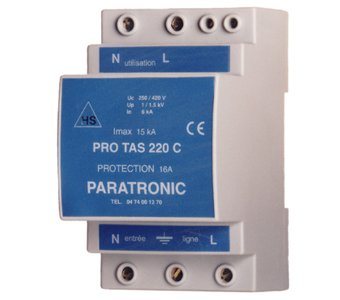

The PARATRONICs storm surges are designed to protect any electronic material (sensors, PLC, telecontrol, communication networks...) against de problems originated by overvoltages and electronic transients.

Eficient and adapted
The different PARATRONIC storm surge arresters allow tailored protection depending on the degree of exposure and the type of devices of the place to be protected. They can be supplied with or without CEM filter, with or without visual signalling and status of service contact.

DATA SHEET

pdf1

ISURKIS STORM SURGES


⌑ Signal

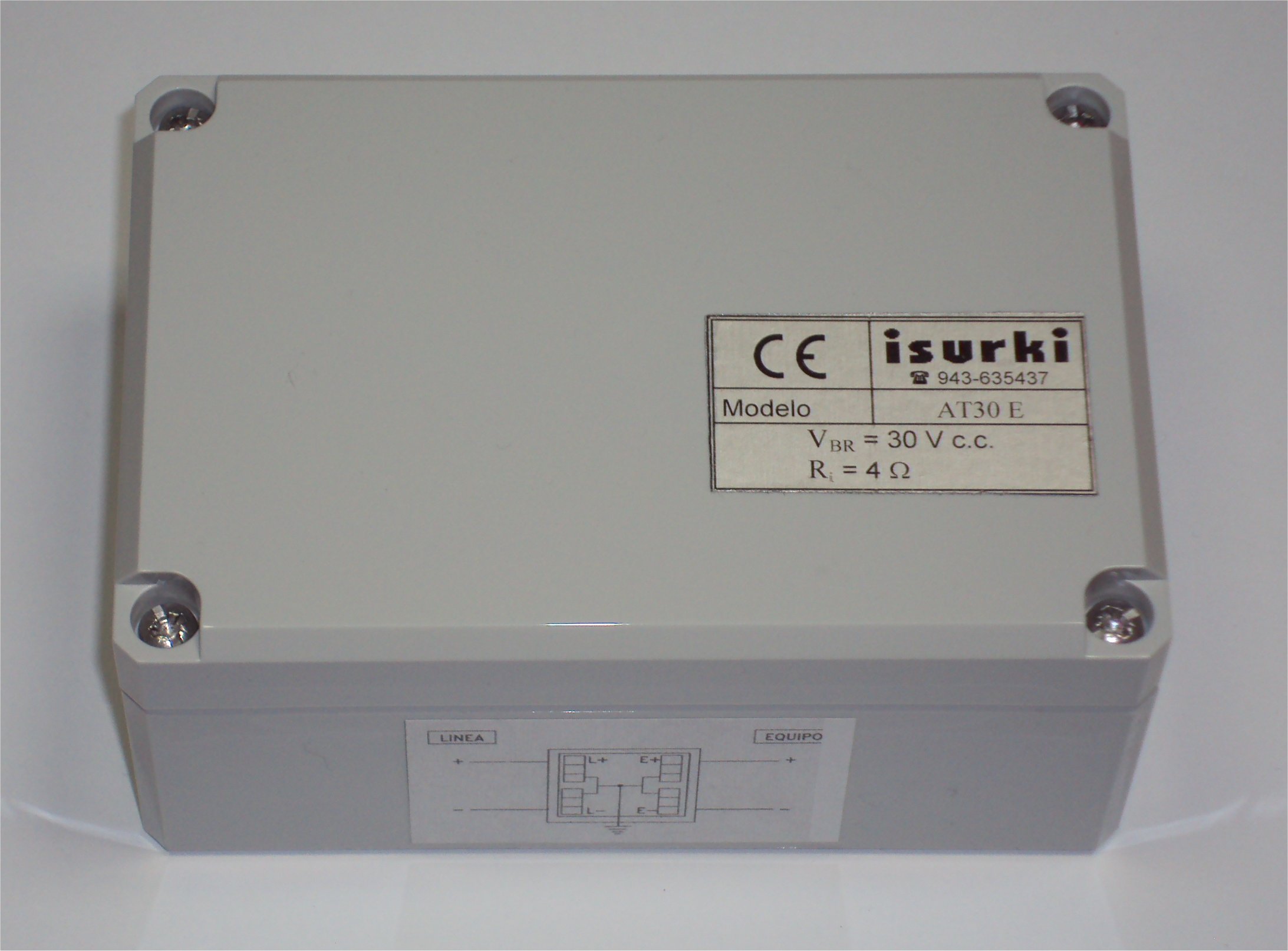

AT30E

AT30E AT30E AT30E AT30E
Application and features

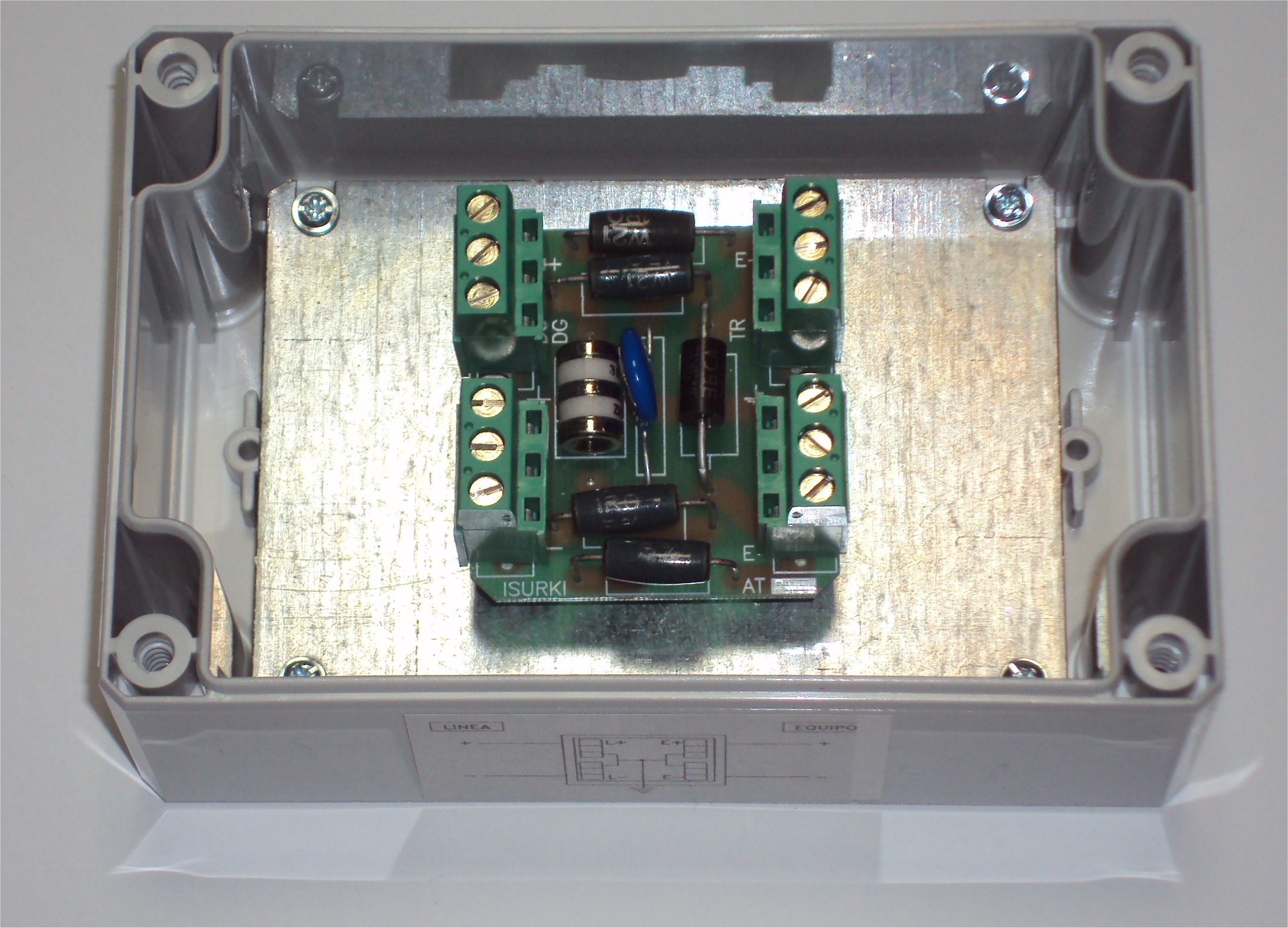

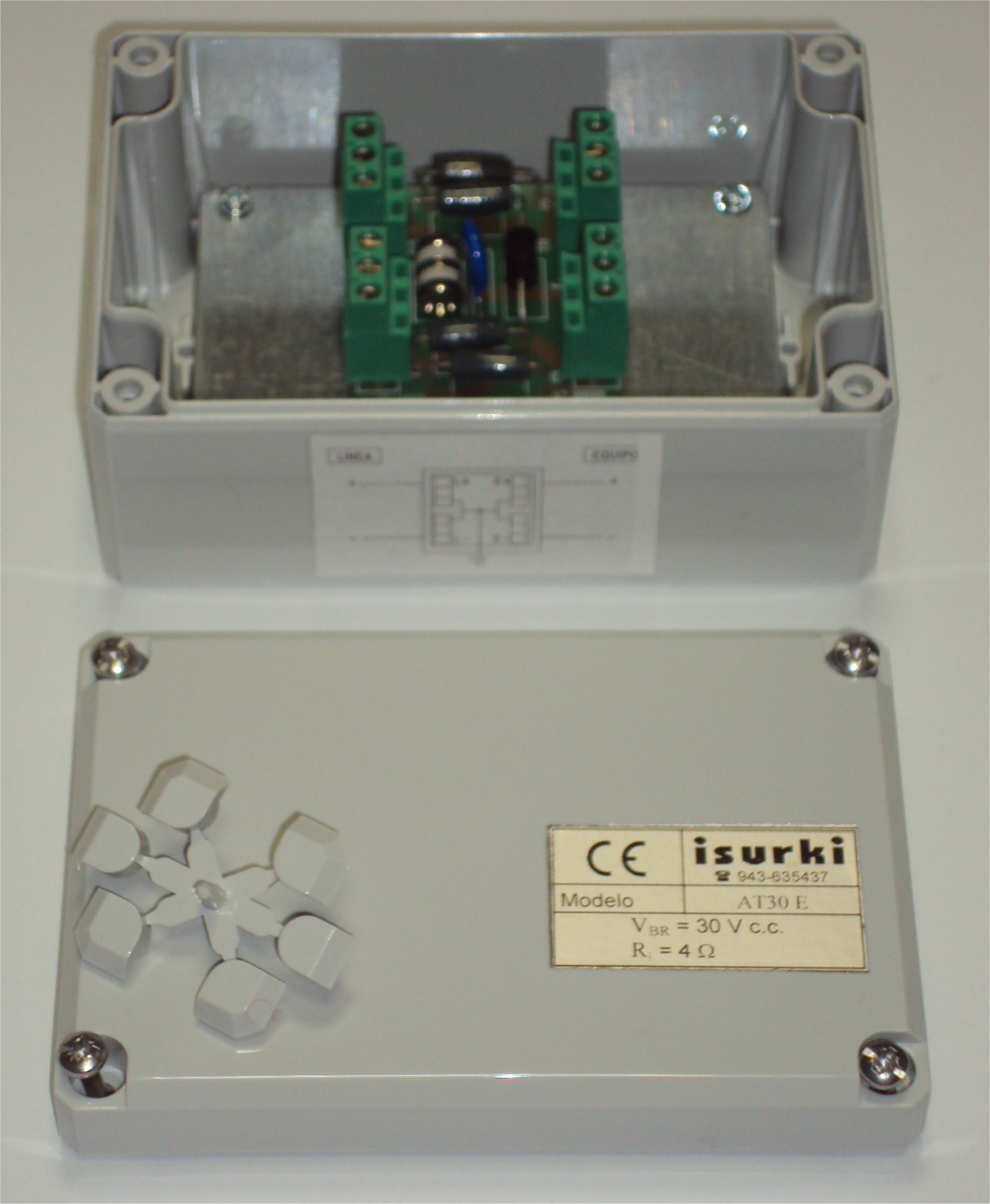

Protection of instrumentation lines with two-wire signal in 4/20mA, 0/10V formats or digital signals. The AT30E is designed for outdoor mounting (IP66) as close as possible to the instrument to be protected and features a maximum discharge capacity to ground of 5kA.

DATA SHEET

pdf1

AT30I

AT30I
Aplication and features

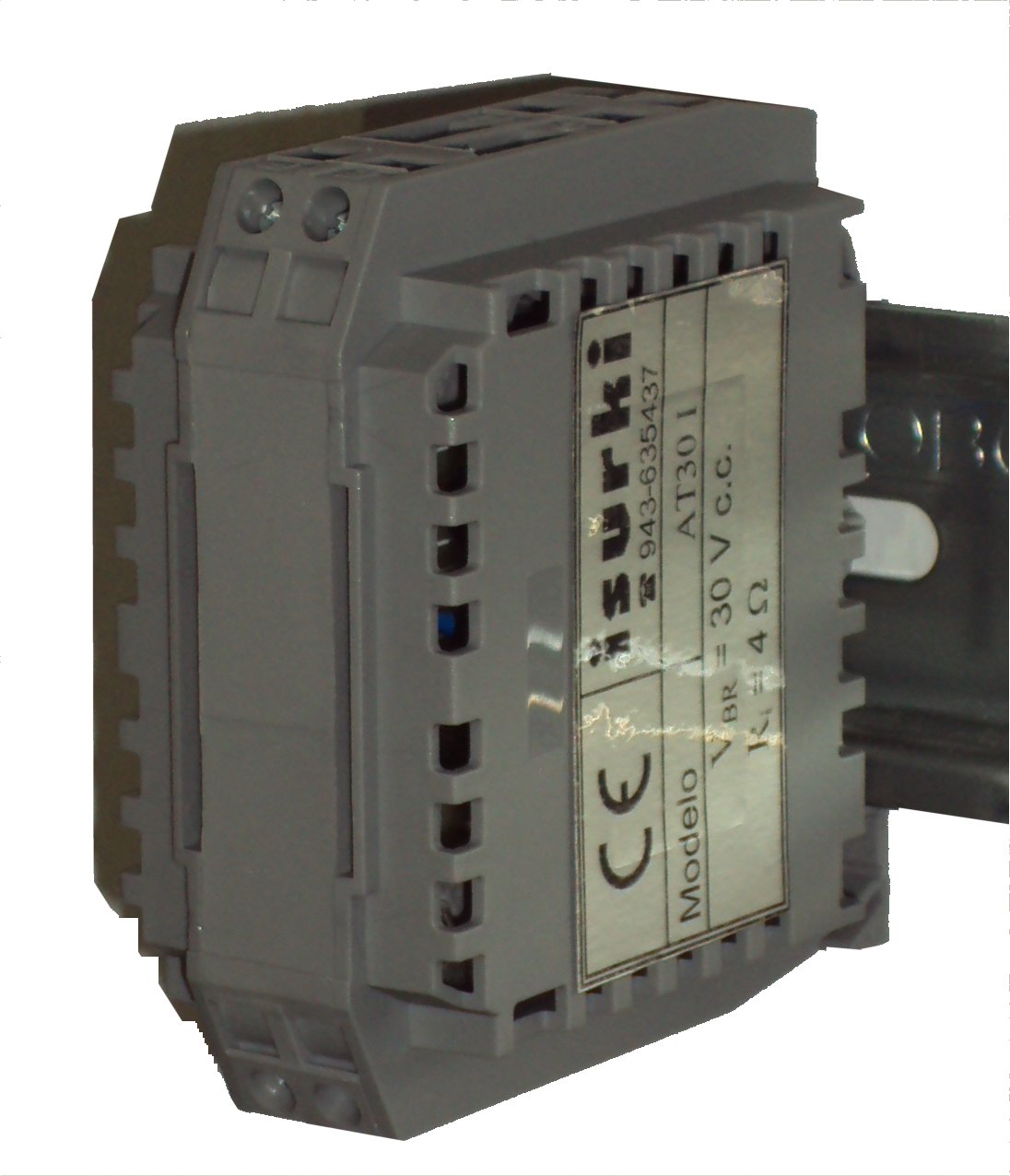

AT30I provides transient and surge protection to two wires signal transmission lines such as 0/4 to 20 mA current loop and voltage analogue inputs/outputs, detectors, serial communications interfaces, switches... with DIN rail mounting in cabinets and boxes. It includes an inner 3 stages based protection system with to earth drainage fast response devices. Manufactured by ISURKI since 1997, AT30I offers a reliable and cost-effective protection for industrial instruments and control devices.


DATA SHEET

pdf1

⌑ Power supply

AT220

AT220
Application and features

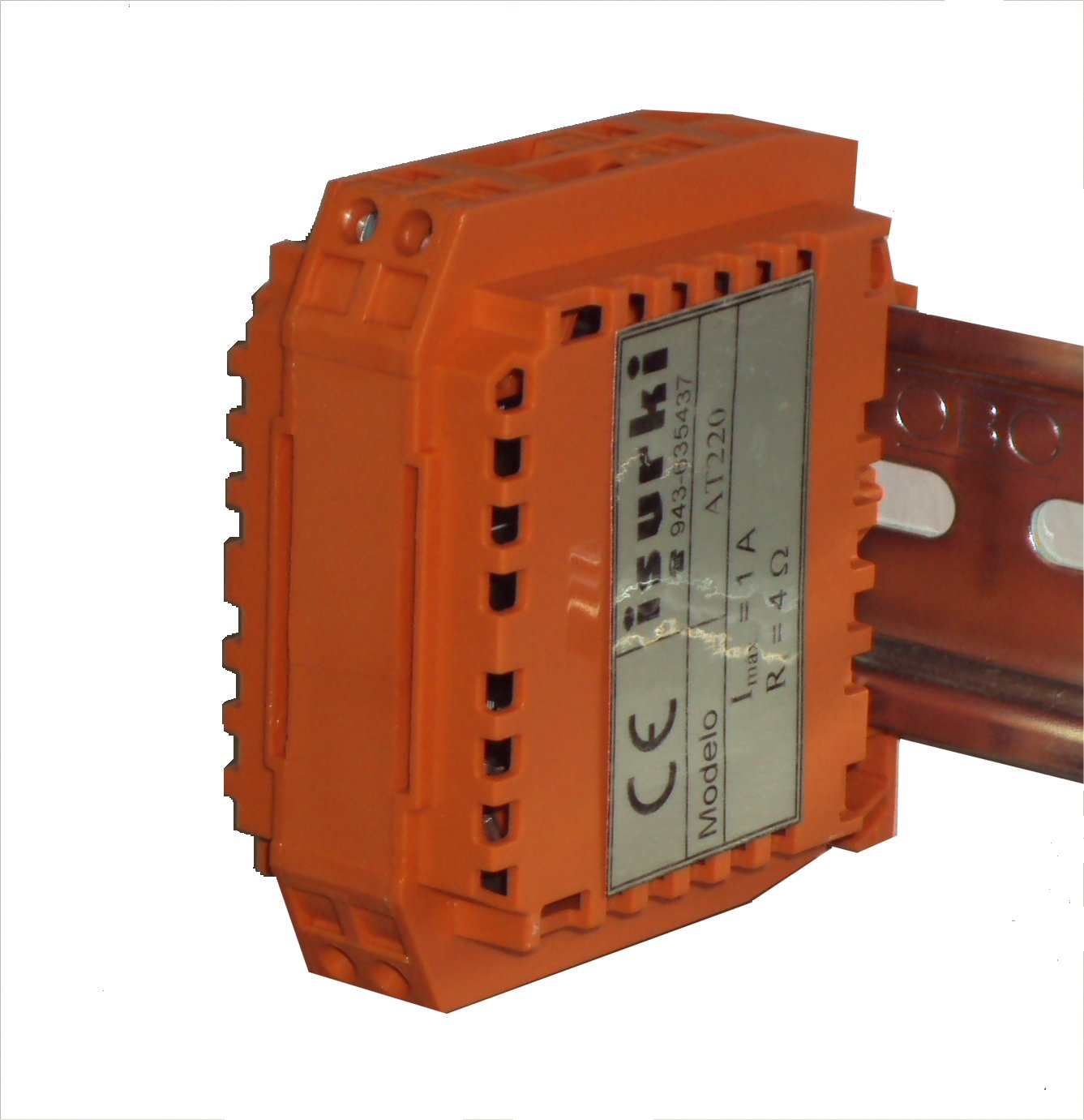

AT220 provides surge protection in single phase AC power mains supply to control devices such as PLCs, industrial controllers, power supplies, instrumentation,.. It includes an internal 3 stage based protection system with to earth drainage fast response devices. Manufactured by ISURKI since 1997, AT220 offers a reliable and cost-effective protection for industrial control devices.

DATA SHEET

pdf1

DISPLAYS AND INSULATORS

Displays and insulators

Displays Displays Convertidor
Displays

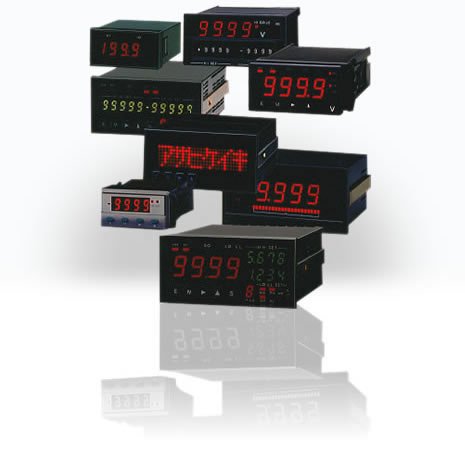

Extensive range of digital panel meter (DPM), with different input ranges, supply voltages, alarms, sizes, digital/analogue outputs,...

Insulators

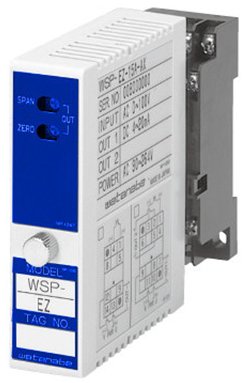

Provides electrical isolation between input signal, output signal and supply, thus isolating primary and secondary circuits and reducing noise and interferences. Self powered versions available, most models can convert the input signal to a different output range required by the user.

DATA SHEET

pdf1
